Description

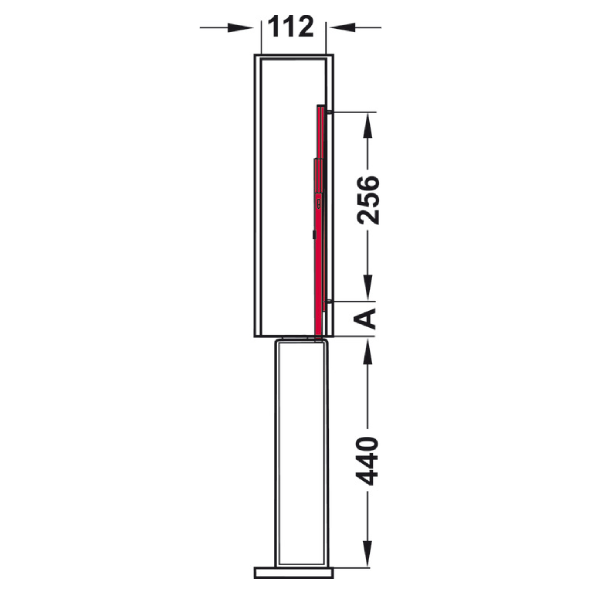

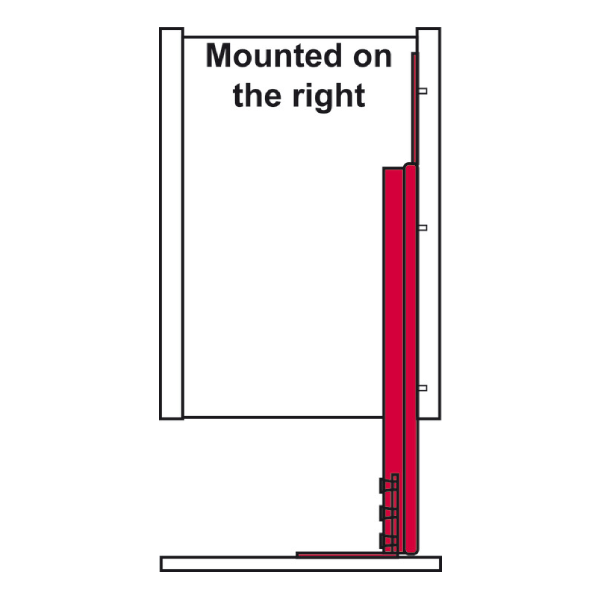

For cabinet width 112 – 150 mm For internal cabinet width ≥112 mm For internal cabinet depth ≥481 mm For internal cabinet height 542 – 540 mm Colour/finish Silver coloured, Silver coloured Mounting Right-mounted Version 2-tier with 2 curved separators Angle: 90° Version Classic Dim. A 38 mm Width 104 mm Depth 473 mm Type of pull out Full extension Load bearing capacity 12 kg Installation depth 481 mm Material Steel Installation For screw fixing to side panel Soft closing mechanism Yes Suitable for Right mounted Features with 2 curved separators, with structured metal bases With clip-on interval connection of track and front bracket to carrier frame
